Hitch-Mounted Water Tank for an RV

This tank fits into the receiver of a trailer hitch and holds 100 litres of water, almost doubling the capacity of the Great West Vans Sprinter Legend. When the main tank is low, we refill it from this tank with a small pump. Arms toward the ends support it laterally and a flat bar behind serves as a bumper. The tank has three baffles and is formed from 1/8" aluminum. The rest of the structure is steel. This would probably fit on any Class B or Class C motor home that could support the weight, which is somewhere around 300 pounds when full. It was fabricated by:

Steve Parsons
Parsons Welding Service Ltd.
25 Dundas Street East
Hamilton, ON L9H 7H8
905 689 5144

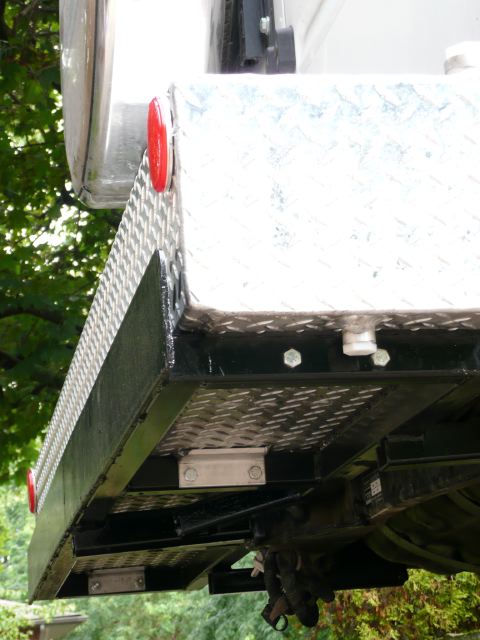

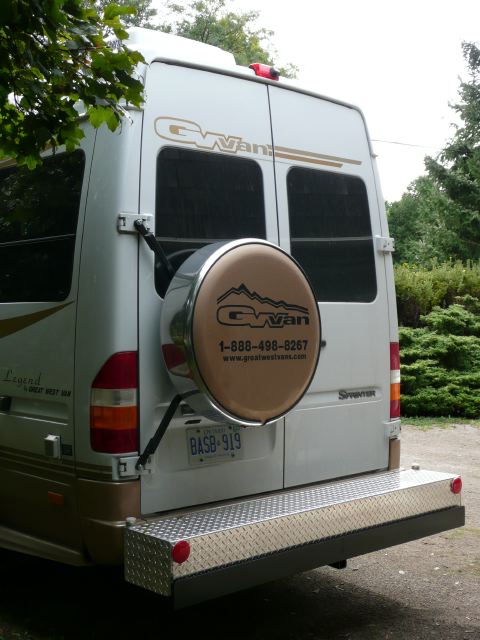

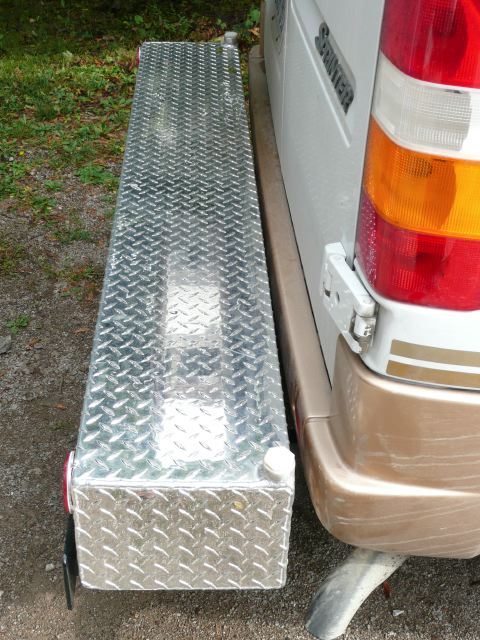

back side bottom
